Filtermedia: Rolls & Pad's

Informations about Filtermedia.

HS-Filtermedia for coarse dusts

Filtermedia for coarse dust filtration. Supplied as Rolls and Pad's.

  • -40…65°
  • G2
  • G3
  • G4
  • 30…75

Washable filter pads are used in air conditioning and air ventilation equipment, when regeneration of the mats after cleaning is required. HS-synthetic fibre filter pads consist of randomly arranged curled synthetic fibres in a multi-layered structure with a graduated density towards the clean air side of the media. Resin and/or thermal bonding provides for a high performance nonwoven fleece. Its engineered structural design has proven to guarantee longer life and high dust holding capacity with low differential pressure-loss in the most demanding applications. After dust saturation filter mats can be easily cleaned either by blowing or washing and be reused.

Standard roll dimensions are 20 x 2 m, pads of all sizes can be cut on order.

Datasheet

HS-Filtermedia for fine dusts

Filtermedia for fine dust filtration. Supplied as Rolls and Pad's.

  • -40…65°
  • M5
  • 50…65

These filter pads are applied in air conditioning or air ventilation equipment for increased perfomance levels as well as supply air filtration for surface finishig. After dust saturation these mats are simply replaced by new ones.

Standard roll dimensions are 20 x 20 m and cut pads can be supplied as required.

Datasheet

HS-Glasfibre Filter Pads

Paint-Stop, high temp filtermedia, glassfibre media with dustbinder

  • -40…250°
  • G2
  • G3
  • M5
  • 20…50
  • 50

HS-Glas Fibre Pads: HS-Glas 1” and 2”
These standard filter mats are suitable ideally for climatic and ventilation systems they consist of flexible glass fibres, which are glued together with a synthetic resin on their corsslinks. The fibre density increases towards the clean air side and ensures thus a large dust storage capability. For more efficient dust extraction the fibre are coated with a dust-adhesive agent. This dust binder is non toxic.

HS-Glas Fibre Pads: HS-Glas-C
These high-quality filter mats are especially designed for strict air cleanliness requirements, e.g. as supply air filters for drying units or paint spray installations. According to the DIN 4012 this material is not flammable. The filter mat consists of the finest glass fibres, which are solidified in themselves to a fleece on the clean air side.

HS-Glas Fibre Pads: HS-PA
This special filtermat is used for high grade arrestance of paint mist in paint spraying cabins or paint shops. The HS-Glass fibre mat is made of a random pattern of thin glass fibres with a spring-like elasticity. The density of fibres increase progressively towards the clean air side, while the fibres becoming finer and finer within the media. Due to this specific structure a high storage capacity of paint particles is obtained in the 50 mm depth of the media. Under favourable conditions it is possible to hold more than 3500 g of paint-mist per sqm of filter area. The mat is not flammable as required by the DIN 4102-B1

Datasheet

HS-Rapid-Change-Frame

Holding frame for filter pads

  • 0…250°

Filterpads can be manufactured in virtually any size. We offer a low cost customized holder frame to meet this variability. A broad range of frame options are availiable rangig from frame depth 20 to 96 mm and various raw materials like galv. steel, aluminum and plastic.

Datasheet

Tube inlet filter HS-AirCone

Conical air filter for tubes and wall inlets

  • 65°
  • G1
  • G2
  • G3
  • G4
  • M5
  • 30…75
  • 50

The HS-AirCone filter is suitable for all pipe or tube channel applications offering „safe-ends“. The filter can be fixed by using a T-piece and thus can be installed and replaced easily. Due to the conical shape of the filter it is offering a surface about 5 times greater than the plain diameter of the tube. HS-AirCone therefore reaches a much lower pressure drop and longer servie-lifetime in comparison to a flat filter or filterpad.

Datasheet

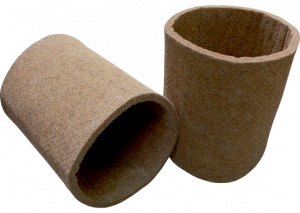

HS-Ring Pak

Supply air filter for compressors or engines

  • -40…65°
  • G1
  • G2
  • G3
  • 20

HS-Ring Pak Ringfilters are designed for pre-filtrering the supply air of combustion engines, compressors and fans. The durable filtermedia consists of latex bound natural fibres.
Technical data:

Filtermedia HS-H/600
Nominal air speed 2,5 m/s
Filterclass EN779 G2
Av. arrestance EN779 77%
Max. temp. 65°C
Max. rel.h.. 100%
Flameablitiy acc. DIN 53438 F1 / K1
Regenerateably? Yes

HS-Ringpak are available in various sizes and will be customized to your requirements.

HS-Automatic Roll Filters

Automatic Roll Filter cartridges

  • 65°
  • G2
  • G3
  • 25

 Range of application
  • automatic roll filters for the useage in existing filter housings
  • prefilter for HVAC Systems
  • main filtration for coarse dusts
These Rolled Fibre Filters are made from highly flexible elasticised interwoven glass fibers, which are bonded at the edges, with plastic glue. With reducing fiber thickness the filter media becomes finer and denser towards the clean airside. These results in a deep dust storage and therefore increased dust storage capacity, which exceeds 2000[g/m2] filter area, with minimal operating pressure variations. To increase filter efficiency and dust storage dust arresting netting material is applied to the filter media. Filter rolls can be immediately fitted to roll filter systems as they are manufactured ready to fit therefore there is no need for any special tooling needed for fitment.

Type HS-Matic and HS-Kleen

To ensure easy fitment of filter rolls they are equipped with a guiding facility. The end of the roll is fitted with a piece of hardboard to enable technicians to remove the used filter roll without disturbing the settled dust or waste in the filter material. The Hs-Matic-Filter media is fitted to steel piping, which has discs on either side. The Hs-Kleen-filter media is fitted to a hardboard pipe.

Type HS-O-fil

New and used filter media is stored in robust disposable cartridges, which are almost waterproof and splash water resistant. This ensures an almost dust free filter change.



Type HS-Fibro

This type of filter media consists of synthetic fibers of varying thickness and reinforced on the clean airside. The material is fire resistant and not fitted with any netting material. The HS-Fibro-roll filter is delivered on a hardboard pipe with bush fittings.

Custom made filter cuts and bags

Filterbags, wireframes, fancoils

  • -40…65°
  • G1
  • G2
  • G3
  • G4
  • M5
  • M6
  • F7
  • F9
  • 30…75
  • 65
  • 50

HS-Synthetic Filterpads can be manufactured also as "big-bags" or with wireframes in accordance with your defaults. Also punching and/or round filter pads can be supplied.
